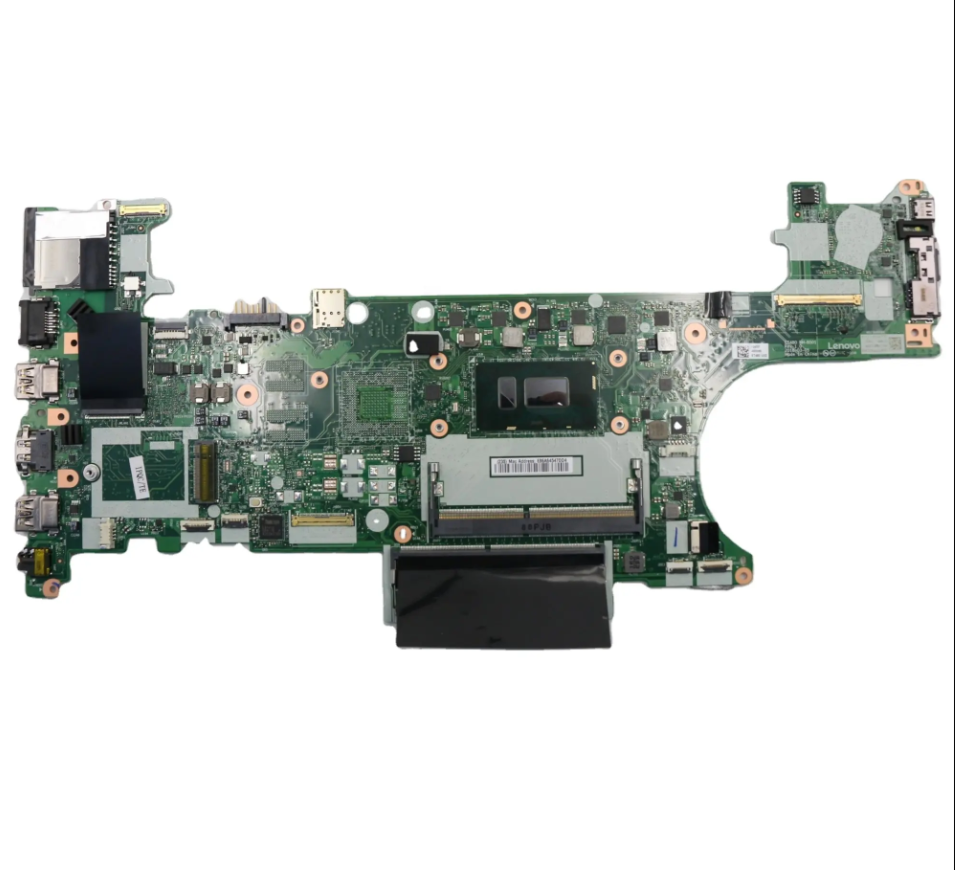

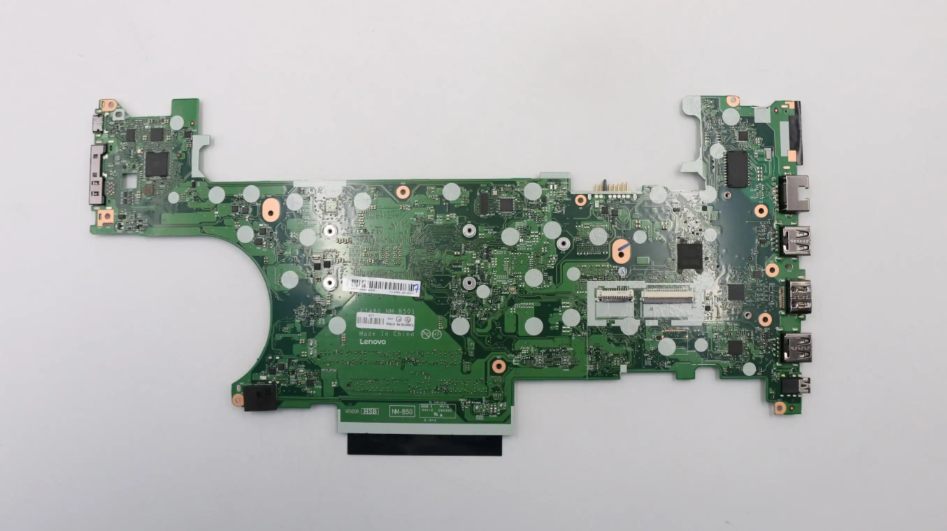

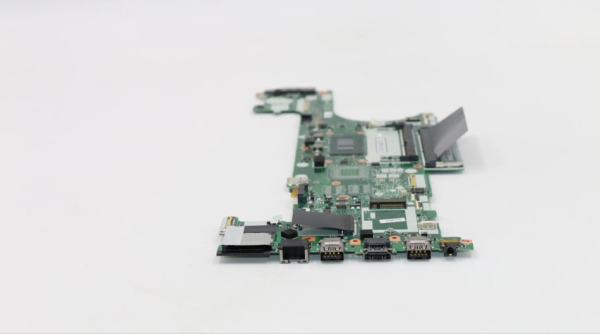

Lenovo Thinkpad T480 i5-8350U Laptop Motherboard DDR4

Description

The Lenovo ThinkPad T480 with an Intel Core i5-8350U processor uses DDR4 memory and is designed for business and professional use. Here’s a breakdown of its motherboard and memory features:

1. Motherboard Specifications:

• Chipset: The T480 typically uses Intel’s QM370 chipset, which supports the 8th generation Intel processors (Kaby Lake-R).
• Processor Support: It supports Intel’s Core i5/i7 8th Gen CPUs, including the i5-8350U, which is a quad-core processor with hyper-threading support.
• Form Factor: The motherboard is built to fit the 14-inch chassis of the T480.
• Expansion: The motherboard offers slots for RAM, an SSD (usually via M.2 2280 slot for PCIe NVMe or SATA), and a 2.5-inch SATA drive.

2. Memory:

• RAM Type: The T480 supports DDR4 RAM.
• RAM Slots: The laptop has two RAM slots, which means it can support up to 32 GB of DDR4 RAM (16 GB per slot). It usually comes with 8 GB or 16 GB of RAM pre-installed.
• Memory Speed: DDR4 memory typically runs at speeds of 2133 MHz or 2400 MHz.
• Dual Channel Support: The laptop can take advantage of dual-channel memory if both slots are populated with identical RAM modules, providing better performance.

3. Storage:

• M.2 SSD Slot: For high-speed storage, the T480 supports an M.2 PCIe NVMe SSD or SATA SSD.
• 2.5-inch Drive Bay: There’s also space for a traditional 2.5-inch SATA hard drive or SSD for additional storage.

4. Other Features:

• Graphics: The laptop comes with integrated Intel UHD Graphics 620 (part of the i5-8350U processor). This provides basic graphics performance for business tasks and some light gaming or multimedia work.

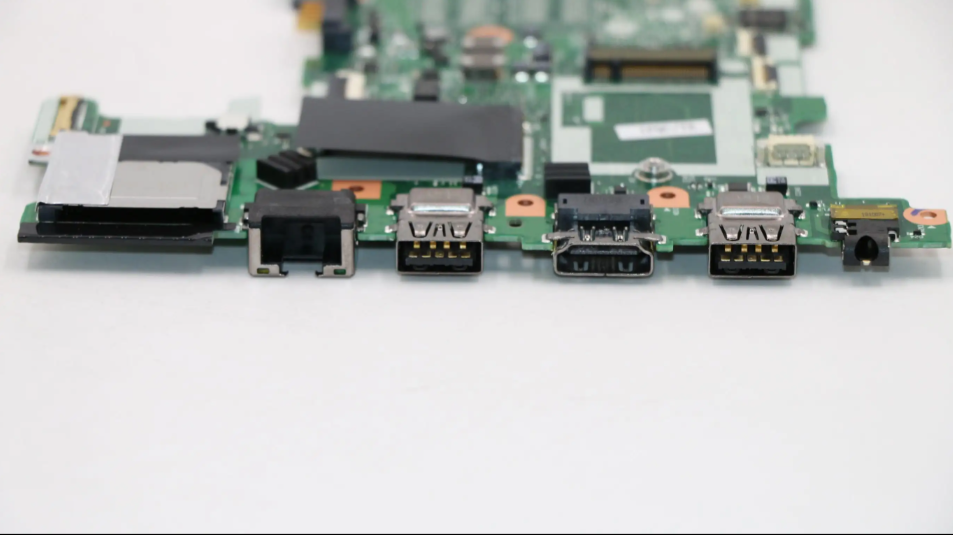

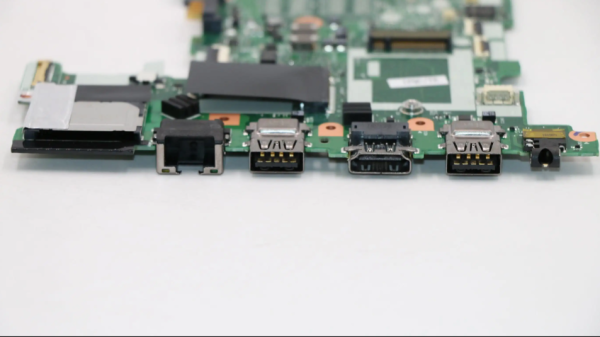

• Connectivity: The T480 offers plenty of connectivity options, including USB 3.0, USB-C (with Power Delivery and DisplayPort 1.2), HDMI, Ethernet, and Wi-Fi 5 (802.11ac).

Upgrading the Memory:

• The Lenovo ThinkPad T480 allows for easy memory upgrades, and it’s common for users to upgrade from 8 GB to 16 GB or 32 GB of RAM, depending on their workload.
• Important Considerations:
  • Make sure to use compatible DDR4 RAM (2133 MHz or 2400 MHz).
  • Ideally, for optimal performance, install RAM in matched pairs (same size and speed) for dual-channel configuration.

If you’re planning to replace or upgrade the motherboard, or just checking compatibility for upgrades, ensure the T480’s motherboard supports your desired configuration, especially in terms of RAM capacity and processor type.
