Thinkpad T470 With i5-6300U Laptop Motherboard DDR4

Description

The ThinkPad T470 with an Intel Core i5-6300U processor and DDR4 RAM is a solid business-class laptop. Here’s a breakdown of the key components and their features:

1. Processor: Intel Core i5-6300U

• Architecture: 6th generation (Skylake)
• Base Clock: 2.4 GHz
• Turbo Boost: Up to 3.0 GHz
• Cores/Threads: 2 cores / 4 threads
• TDP (Thermal Design Power): 15W
• The i5-6300U is a dual-core, low-power CPU commonly found in ultrabooks and business laptops. While it may not be the latest generation, it still provides decent performance for tasks like web browsing, office productivity, and light media editing.

2. RAM: DDR4

• RAM Type: DDR4 (likely 2133 MHz or 2400 MHz)
• The T470 supports up to 32GB of DDR4 RAM, although the typical configuration for most models is 8GB or 16GB.
• DDR4 RAM is faster and more power-efficient compared to older DDR3 RAM, which means faster data access, improved multitasking, and better overall performance.

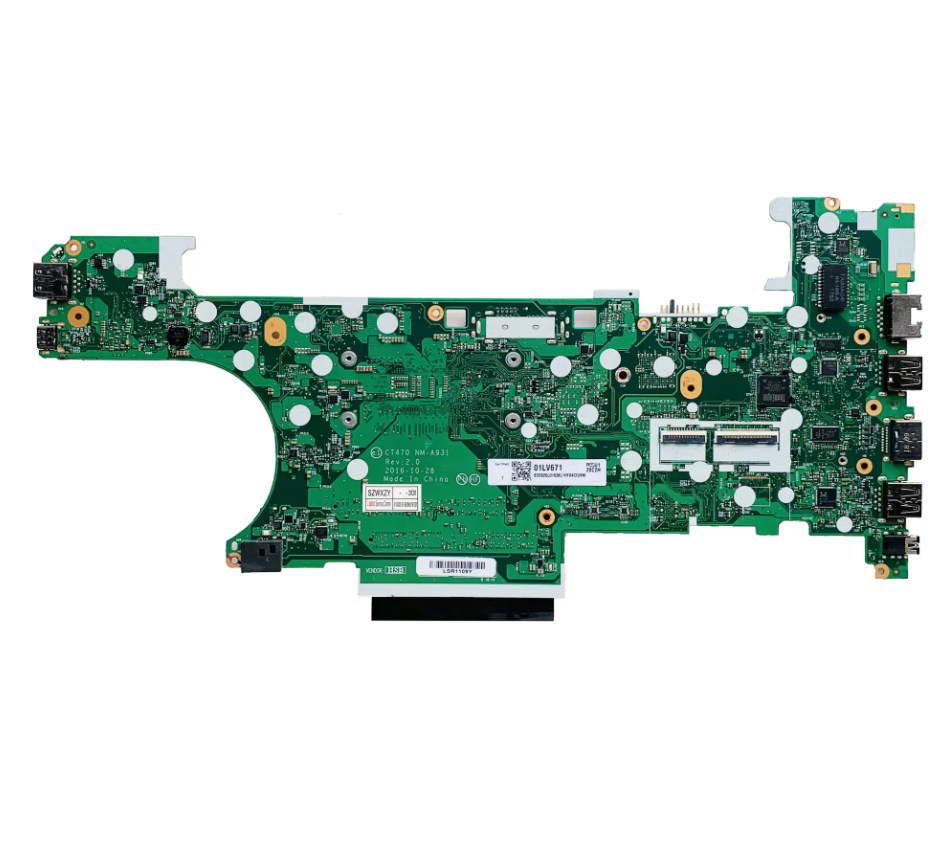

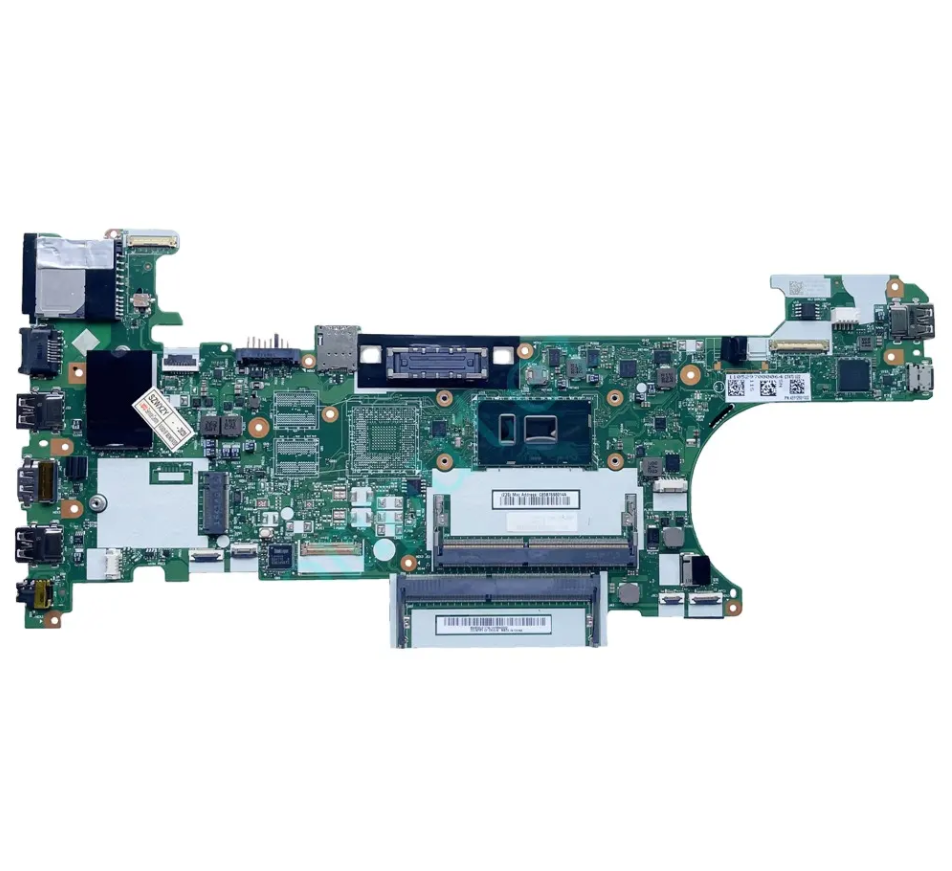

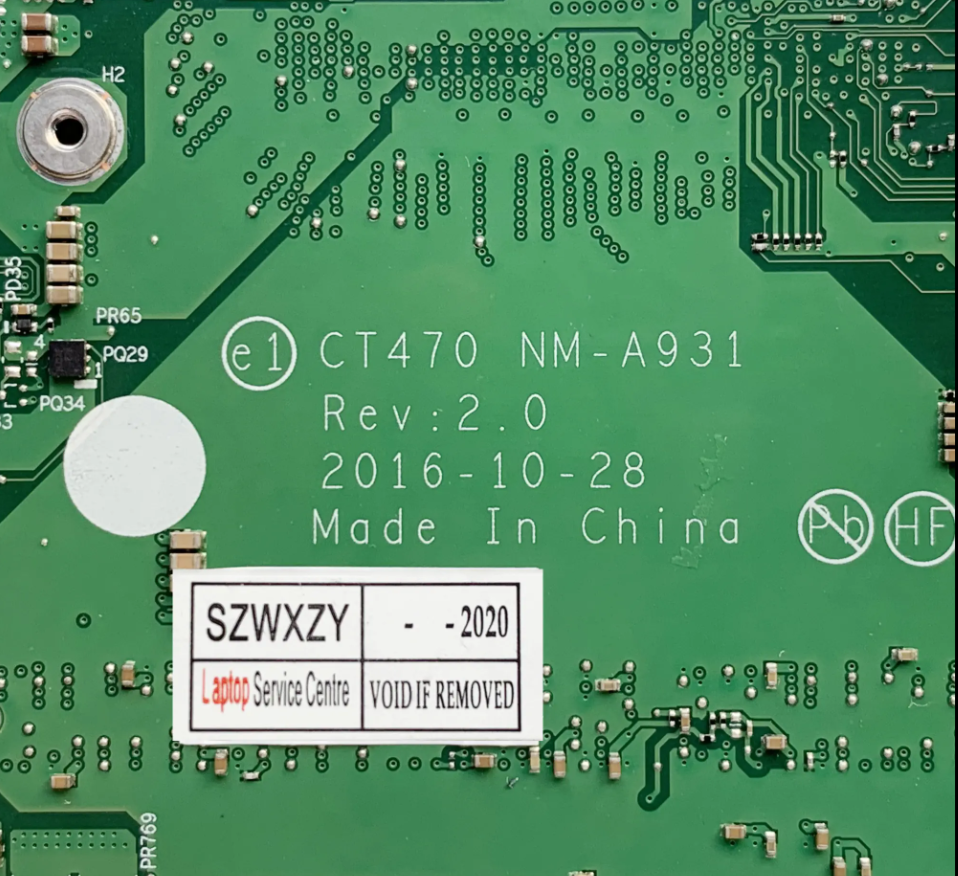

3. Motherboard: ThinkPad T470

• The motherboard in the ThinkPad T470 supports DDR4 memory, and likely includes:
  • 2 DIMM slots (so you can upgrade the RAM if needed)
  • A M.2 slot for storage (SSD) and potentially a second storage slot (depending on the configuration).
• The motherboard is designed for reliability and stability, often with Lenovo’s proprietary components for better performance in business environments.
• Intel HD Graphics 520 is integrated into the i5-6300U, suitable for light graphical tasks, such as video playback and office work but not for heavy gaming or graphic-intensive tasks.

4. Storage Options

• The T470 generally comes with SSD storage (SATA or PCIe NVMe), which provides faster read/write speeds compared to traditional HDDs.
• You can easily upgrade or replace the storage by removing the back panel.

5. Display and Build

• Display Size: 14-inch display, usually with a resolution of 1920×1080 (Full HD). Higher-end models might have touch-screen options.
• Build: It follows the typical ThinkPad aesthetic, with a durable plastic and magnesium alloy chassis, which is known for its military-grade toughness and overall reliability.

6. Ports and Connectivity

• USB: 2 x USB 3.0, 1 x USB Type-C (with Power Delivery)
• Ethernet: Gigabit Ethernet port (RJ-45)
• Display: Mini DisplayPort, HDMI
• Audio: Combo headphone/mic jack
• SD Card Reader: Yes
• Wi-Fi: Intel 8265 802.11ac (Wi-Fi 5), Bluetooth 4.1

7. Battery Life

• The T470 typically comes with a 3-cell 24 Whr or 6-cell 72 Whr battery, depending on the configuration.
• Battery life can last up to 10-12 hours depending on the battery size, usage, and power settings.

8. Upgrade Potential

• The RAM can be upgraded if you’re not already at the maximum (32GB).
• The storage is also upgradeable, either by replacing the existing SSD or adding a second one (if there’s an empty M.2 slot).
• Wi-Fi card: Can be replaced if you need to upgrade to a newer Wi-Fi standard (Wi-Fi 6, for example).

9. Common Use Cases

• Ideal for business professionals, remote work, and students needing a reliable and portable machine for everyday tasks.
• Not ideal for demanding gaming or video editing, but capable of light multimedia work.

Conclusion:

The ThinkPad T470 is a solid, reliable machine designed with a focus on performance, durability, and ease of use for business and professional environments. The i5-6300U paired with DDR4 RAM should offer enough performance for most office tasks, light multitasking, and web browsing. If you’re looking to upgrade it or need a machine for daily work with an emphasis on reliability, the T470 should still serve you well.
